Industrial Surfaces
Technical Mats

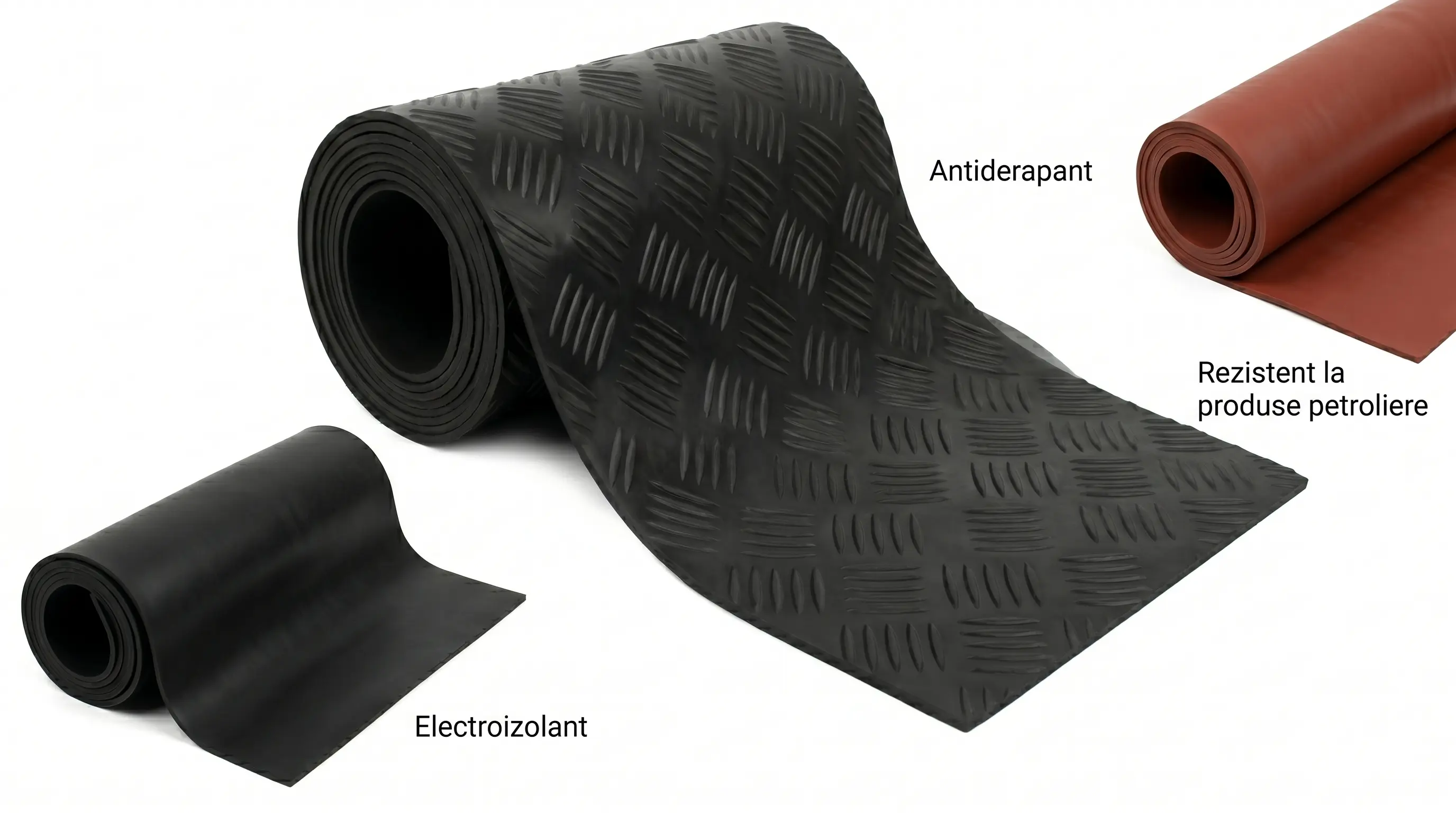

Rubber mats and matting for electrical safety, anti-slip, oil resistance, ergonomics, and heavy industrial environments.
Rubber mats and matting for electrical safety, anti-slip, oil resistance, ergonomics, and heavy industrial environments.
Available from stock in standard dimensions or cut to any shape and size from roll material.
Certified dielectric protection up to 35 kV per IEC 61111. Available in 6, 8, and 10 mm thickness. Mandatory for electrical substations and MV/LV panels.
Friction coefficient >0.6 for slip prevention in wet or oily areas. Thicknesses 3, 5, 8 mm, roll widths 1.0 / 1.2 / 1.5 m.
Resistant to mineral oil and diesel. Thicknesses 5, 8, 10 mm, operating range −30 / +80°C. Suitable for auto service pits and machine shop floors.
Reduces musculoskeletal strain for workers standing long hours. Shock absorption >50%, thicknesses 12 and 15 mm with cushioned underside.
High-load applications — thicknesses 10, 15, 20 mm, Shore A 60–80, abrasion resistance >100 mm³ per DIN 53516. For press areas and roll-through traffic.
Rolls up to 2.0 m wide, custom cut to any length or shape. Notches and holes cut to drawing. Minimum order: 1 running metre.
Key parameters for the four main mat categories.
| Parameter | Electroinsulating | Anti-Slip | Oil-Resistant | Heavy Industrial |
|---|---|---|---|---|
| Insulation voltage | Up to 35 kV | — | — | — |
| Available thickness | 6 / 8 / 10 mm | 3 / 5 / 8 mm | 5 / 8 / 10 mm | 10 / 15 / 20 mm |
| Shore A hardness | 55–65 | 50–65 | 55–70 | 60–80 |
| Min. temperature | −30°C | −30°C | −30°C | −20°C |
| Max. temperature | +80°C | +70°C | +80°C | +90°C |
| Roll width | 1.0 / 1.2 m | 1.0 / 1.2 / 1.5 m | 1.0 / 1.2 m | Up to 2.0 m |
| Applicable standard | IEC 61111 | EN 13893 | DIN 7716 | DIN 53516 |
Technical mats specified and installed across a wide range of industrial facilities.
We manufacture mats in NBR, SBR and electroinsulating rubber compounds, with anti-slip, smooth or ribbed surfaces depending on the application.
Yes, mats are manufactured to order in custom widths, lengths and thicknesses according to the client's requirements.
We supply both individual rolls/pieces and large industrial quantities, with no fixed minimum order.
The required dimensions, the intended use (electroinsulating, anti-slip, heavy industrial) and, if available, a technical drawing or sample.
Tell us the application, required dimensions, and any certification needs — we will supply the correct product.
